| Key Features | Overview |

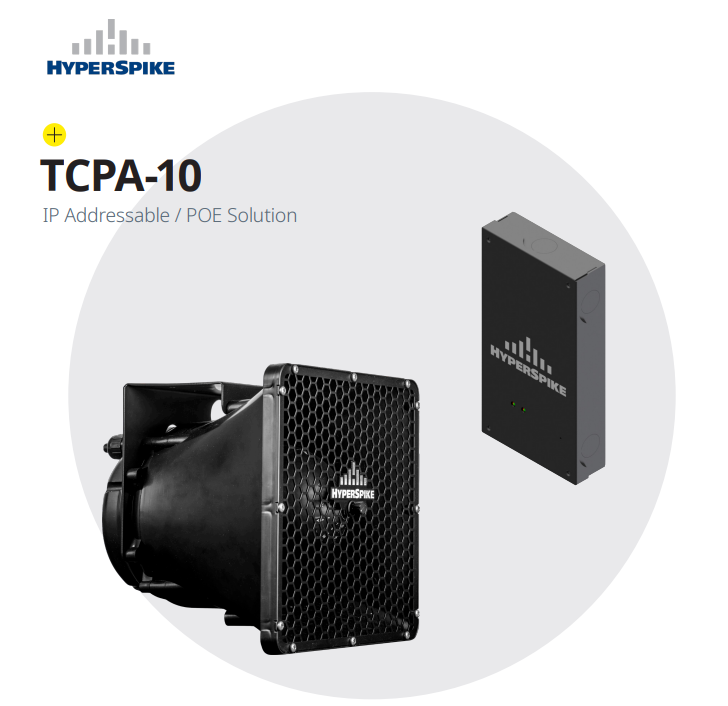

| The HyperSpike® TCPA-10, known for its ability to cut through high-ambient environments with clear and authoritative tone and voice notification, is now available with an IP-addressable, self-amplified system. Designed with the latest advancements in IP audio, the IP-addressable TCPA-10 is optimized to operate off network power and produce clear, authoritative voice commands when plugged into standard IP audio streaming and ENS systems. With the addition of IP-addressable amplification, the HyperSpike® LineWave can be easily applied to play background music, deliver live announcements via standard SIP protocols, and tie into a variety of number of different IP emergency notification system protocols. Best-in-industry voice quality and intelligibility, combined with market-proven IP-addressable technology, make the TCPA-10 the right choice for ensuring messages are heard and understood |
Technical Specifications
Speaker Unit Specifications | |
| Nominal Speaker Impedance | 8Ω |
| Usable Range @ 80dB, A-weighted | 380m (1246ft) |
| dB SPL Max @ 1m | 131 |
| Input Sensitivity (2.83Vrms/1m) | 112dB |
| Vertical Coverage -9dB (AVG 1kHz-4kHz) | 120° |
| Frequency Response (±6dB) | 400Hz-15kHz |
| Color | Black, Grey, Red, White |
| Enclosure Material | Flame Resistant Composite |
| Grille Material | Steel |
| Certification | UL1480 (Indoor and Outdoor Applications) |
| Production Dimensions (in) H x W x D | 10.1 x 10.1 x 11.3 |
| Speaker Weight (lbs) | 9.0 |
Power Over Ethernet Amplifier Module Specifications | |
| Power Supply | PoE (802.3af) / PoE+ (802.3at) / 4PPoE (802.3bt) / 24VDC 2.5A |
| Ethernet Interface | RJ45 100/1000 Mbit Auto Detect (IPv4 and IPv6 Capable) |
| Network Configuration | Automatic IP Configuration on Open Networks |
| User Interface | Graphical User Interface for Setup and Control |
| Digital Audio Formats | MP3 CBR/VBR, Up to 320kbps, 8.48kHz Sample Frequency AAC-HE (AAC, AAC plus, AAC plus V2) PCM Linear 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz G.711 / G.722 / GSM / Opus |
| Emergency Notification Compatibility | Stored Message Playback Auto Registration with Common ENS Platforms InformaCast, Syn-Apps, Other* |
| Health and Status (Visual) | LED Status Lights — Physical Reset Button |
| Security | HTTPS Secure Connection |
| IP Addressing | DHCP/Static |
| IP Module Dimensions (in) H x W x D & Weight (lbs) | 8.8 x 4.7 x 1.6 < 2 |
| Internal Track Storage | 1GB storage |
| Temperature Range | 0-50°C (Operating Conditions) |
Architect and Engineer Specifications
Voice paging and tone signaling loudspeaker shall be Ultra Electronics Model. Unit shall be network addressable and powered by POE+. The speaker shall be UL listed, weather resistant, and constructed of rugged 5VA rated, UV resistant ABS plastic. The loudspeaker shall be able to operate within any ambient temperature environment ranging from -40°C to 60°C. The speaker shall have a sensitivity of 112dB when measured at 1m (AVG 400-4,000Hz) and a beam width of 90° (-6dB at 1kHz). Model shall be a non-re-entrant compression loaded transducer with a 3” polyamide diaphragm and power handling of 40W continuous. Frequency response shall be 375Hz-15kHz. Dimensions shall be 10.1”H x 10.1”W x 11.3”D.
Note: Please see Models and Technical Specifications to fill in the blanks for specific speaker selection.
Ordering Information
System Part Numbers | |
| Speaker with POE+ Module | 90271A-801-XX |
| Color Options (Speaker Only) | 01-Black, 04-Gray, 05-Red, 06-White |
| Optional 24V AC/DC Converter | 42364A-1 |
Power and SPL Specifications
Model | Input Power | Max Power Draw (W) ¹ | Typical Power Draw (W)² | SPL Max @ 1m |
TCPA-10 (8Ω) | PoE | 10.8 | 5.2 | 123 |
| PoE+ | 22.0 | 8.2 | 128 | |
| 4PPoE (Type 3) | 34.5 | 13.0 | 130 | |
| 4PPoE (Type 4) | 34.5 | 13.0 | 130 | |
| External 24V | - | - | 130 |
Note 1: Maximum power draw with continuous, full-power tone.
Note 2: Typical power draw using voice at full volume.
Connection and Wiring
TCPA-10 IP models come with an IP-addressable, self-powered amplifier module that can be mounted in a remote, hidden location and tied directly to the 6ft speaker cable provided with the TCPA-10. Simply wire the speaker cable to the IP module as defined in the manual and connect the RJ45 cable to the module to complete installation. The addition of a 24V power supply will allow the units to have redundant power sources and allow for additional output SPL and auto switching in the event of a power failure
